ECC
ELEVATOR

DL-20 Information

Click on any item in the index to go directly to that information.

1.) 7" standard or 10" optional video screen

2.) Specific areas on the screen for the owner or manager to display advertising or informational slide show.

3.) Specific areas on the screen for display of position indicator and direction indicator

5.) High quality speaker for floor voice annunciator and gongs. Voice files can be custom made in any language.

6.) Built-in emergency phone with easy voice guided programming features and advanced capabilities

7.) Built-in ultra long life and low energy consumption LED emergency light.

8.) Advanced controller integration to allow for communication and monitoring of elevator faults and conditions. Support for Smartrise, MCE, ibox, Pixel systems, and G.A.L. Galaxy. NO INTERNET CONNECTION REQUIRED!

10.) Automated Call-out capability for automatic reporting of elevator trouble conditions.
The DL-20 can be programmed to call (or email with third party software) the elevator service company and report elevator problems such as low oil, and open safety circuit. NO INTERNET CONNECTION REQUIRED!

9.) Call-in for Advanced elevator system trouble monitoring. Elevator system can be checked for trouble by placing a simple telephone call and following basic voice guided prompts.

4.) Built-in driver for compatible ECC hall station position and direction indicators.

11.) Easy to use software and programming packages.

12.) "DL-20 Manager" software for the elevator company, used to program all features of the DL-20.

13.) "DL-20 Ad Converter" software for the bulding owner or manager to convert their slide shows and prepare them for installation on the DL-20.

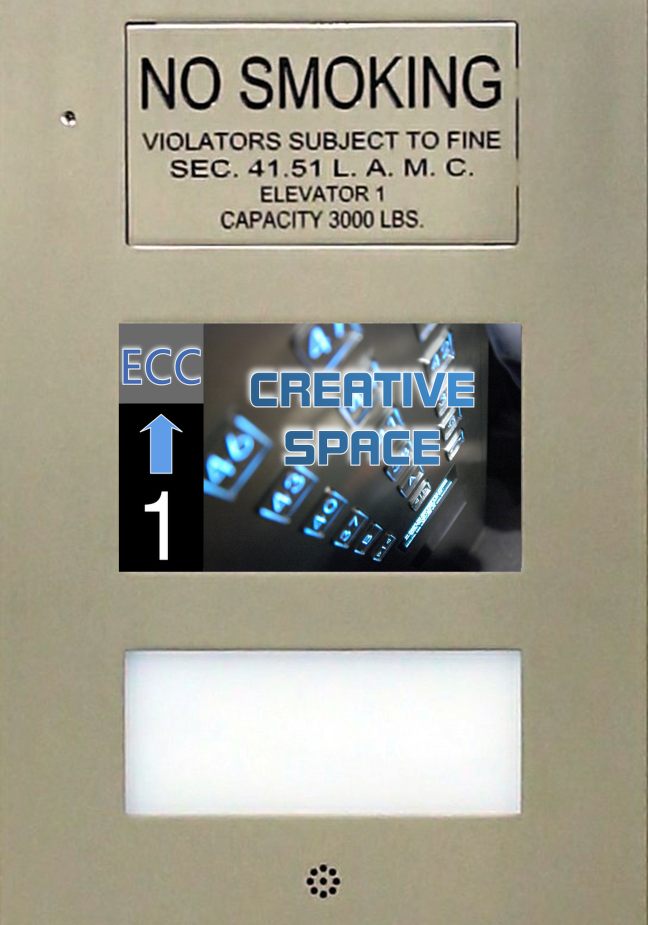

7" Standard Display

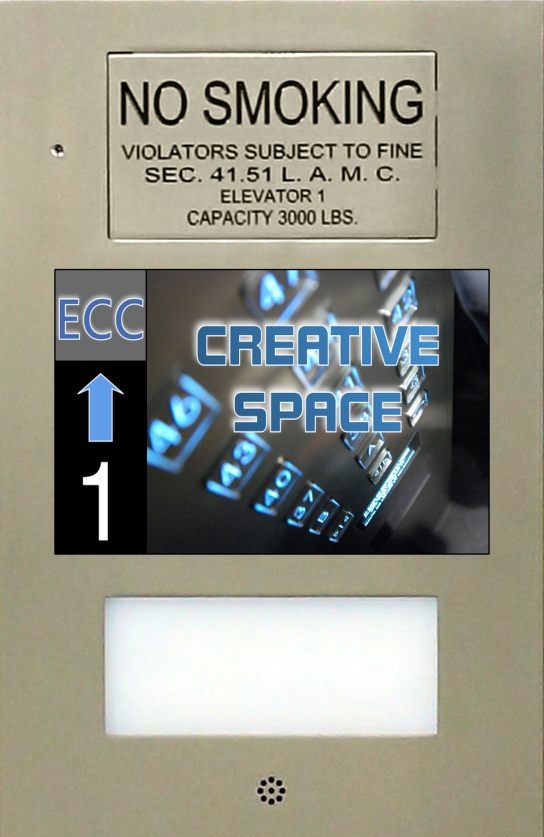

10" Optional Display

OWNER OR MANAGER ADVERTISING SPACE

LOGO SPACE

POSITION &
DIRECTION

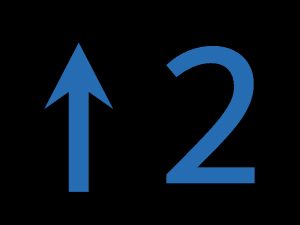

Ecc Electronic Position Indicator Example

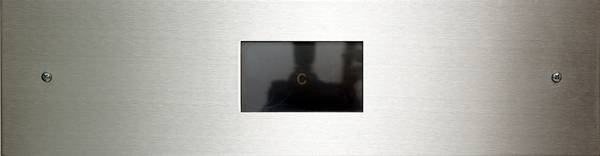

ECC Hall Position & Direction Indicator
Available in standard and custom configurations

High quality speaker for clear annunciation.
Wave sound files can be customized for any language
and any set of directions.

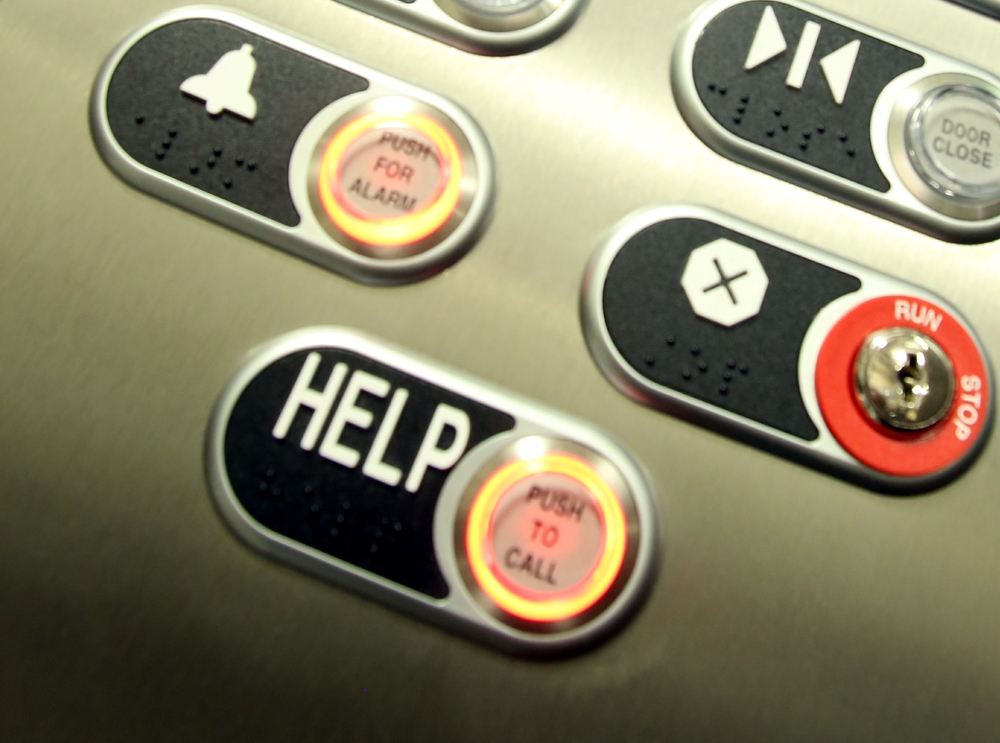

Advanced hands free speaker phone. Easily programmed with simple to follow voice prompts.
Phone has master and slave feature which will allow up to 8 phones on a single phone line.
Phone can store multiple numbers and has location identification capability.

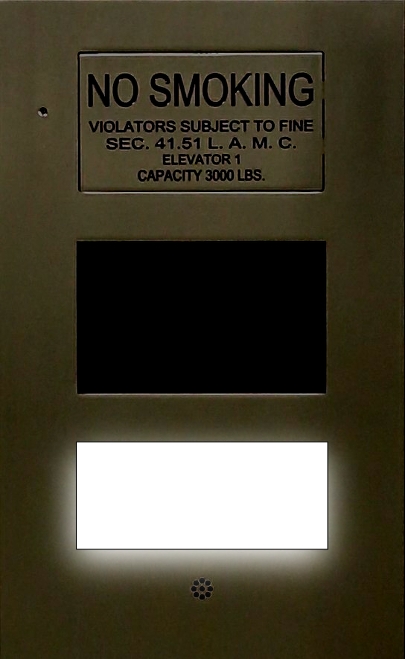

Long life and low draw LED emergency light unit.
Superior to incandescent in every way, LED emergency lighting will likely last longer than the elevator.
Precious battery power is conserved for hours of bright comforting light.

Currently compatible with the following manufacturers. Please contact ECC if you need another brand.

Call the elevator phone number and follow simple voice prompts to diagnose faults and status.

Or

Program the DL-20 to Call out to a specific phone number and announce the location and problem when a fault is detected

Or

Program the DL-20 to use a 3rd party voicemail transcription service to send trouble calls as an email. (ie. the free Google Voice service)
No internet connection needed.

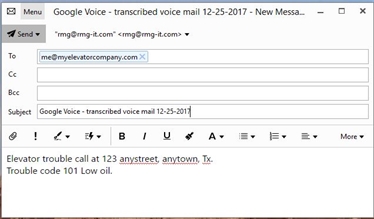

DL-20 Voice Call Converted To Email By Google Voicel

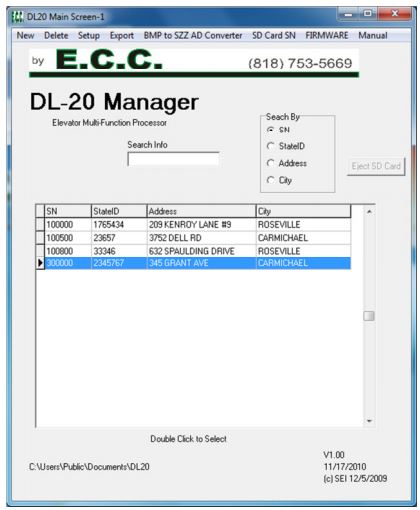

The DL-20 Manager is the primary software package designed for the Elevator Company. It will program all features of the DL-20. It can be used on any standard PC. The programming is placed on an SD card which is then simply inserted into the DL-20. Your programming and configuration for every elevator is saved so future re-installation or changes can be made quickly and easily.

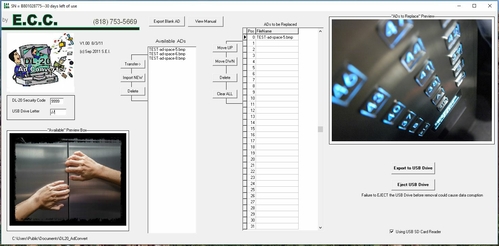

The DL-20 AD Converter is the primary software package designed for the Elevator Owner or Manager. It will convert and package the owners slide show into the proper format needed for transfer to the DL-20. Slide configuration is saved so future re-installation or changes can be made quickly and easily. Transfer is made with a simple thumb drive.
